Thread Repair Kits & Thread Inserts

No MOQ is required for the majority of our in-stock/ready stock products.

We usually only offer self pick-up as it’s best for the customer to verify that the product is correct and in working condition.

You may also choose to arrange your own delivery/courier service as well.

For more enquiries, do call us at +65 6294 6388 or cmltc@singnet.com.sg and we will assist you.

For international shipping, please make an enquiry at +65 6294 6388 or cmltc@singnet.com.sg.

Yes, preorders/indents are possible. You may choose either air or sea freight.

Please make an enquiry at +65 6294 6388 or cmltc@singnet.com.sg.

No, we do not offer returns or exchanges.

If you’re not sure of which product you need, we strongly recommend bringing a sample (e.g. workpiece) to us.

Our team can assess it on the spot, and we can accurately identify the correct specifications or the matching product for you.

For example, we can answer questions such as:

• What size do I need?

• Which product matches this code (e.g. IMPA, BSP, NPT, UNC)?

• How do I make or repair the thread?

Bringing a sample ensures we can give you the most accurate advice.

If you’re a ship chandler, procurement officer, or buyer/purchasing agent who needs to get a product using an item code, feel free to make an enquiry at +65 6294 6388 or cmltc@singnet.com.sg.

Yes, we work directly with global manufacturers and all our products are 100% authentic.

Some of our products, such as those from the TRIANGLE brand, are indented with “CML” on them to indicate their authenticity. You can see this in the images below.

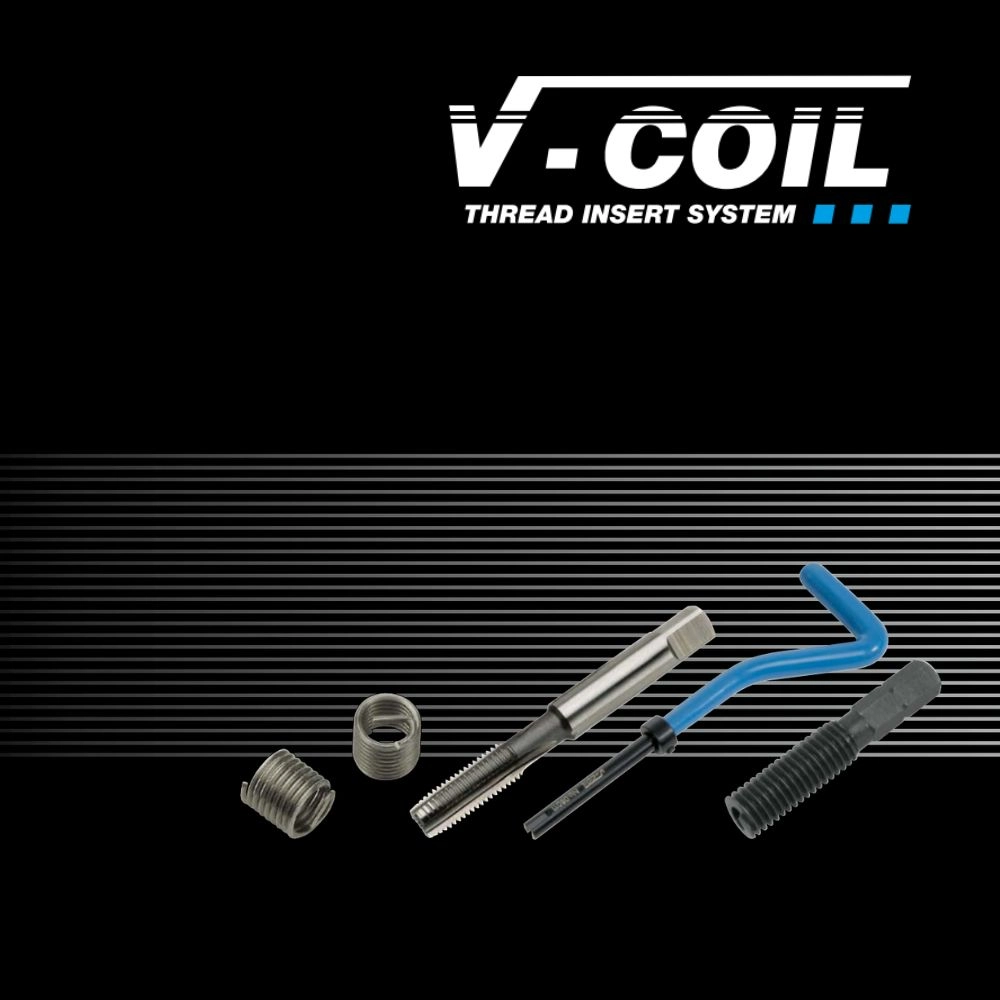

Thread repair kits include helical inserts / screw thread inserts, a type of coiled wire that functions as a kind of thread repair insert, enabling you to accommodate fasteners or other elements. Some are made from stainless steel, while others are made from bronze.

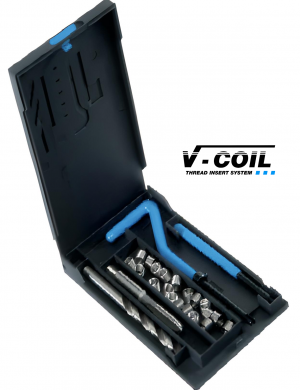

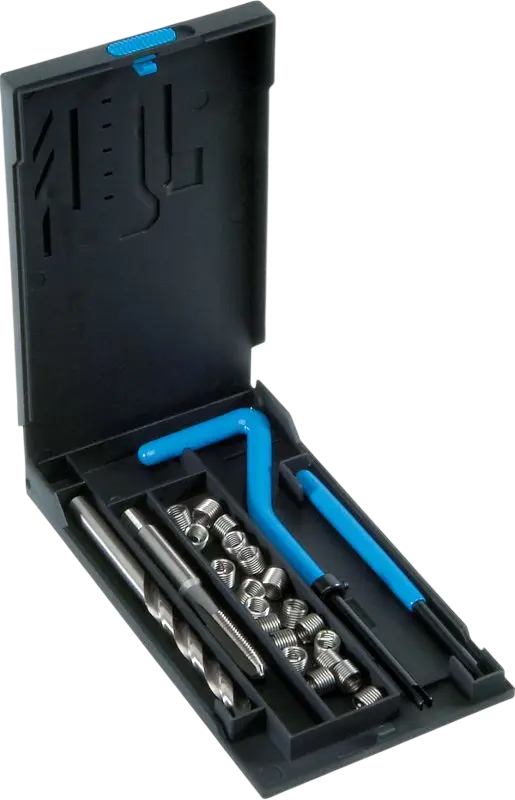

Our thread repair kit includes an inserting tool as well as the wire thread insert, and a special STI tap. You can use this kit to repair or strengthen an internal thread that can be used to hold a screw or stud.

The thread repair process is for existing damaged internal threads. This will come in handy if the workpiece is not easily replaceable.

Wire thread inserts are also widely used in the electrical, medical, and aerospace industries as a preventive measure to reinforce and protect threads.

Here are some of the few benefits that come with using our wire thread inserts.

Expanding Your Thread Size Range

With a wide variety of sizes to choose from, you can expand your thread repair applications. We’ve got inserts ranging from smaller to larger diameters allowing you to expand your use.

A Wider Selection

Our wire thread inserts are available in a variety of configurations. We have access to a range of thread types and pitches, available at different lengths. This includes Metric Coarse Pitch, Metric Fine Pitch and a variety of Imperial Thread Sizes.

Given our wide variety, we’re sure to have the right thread repair kit to help you in a fix.

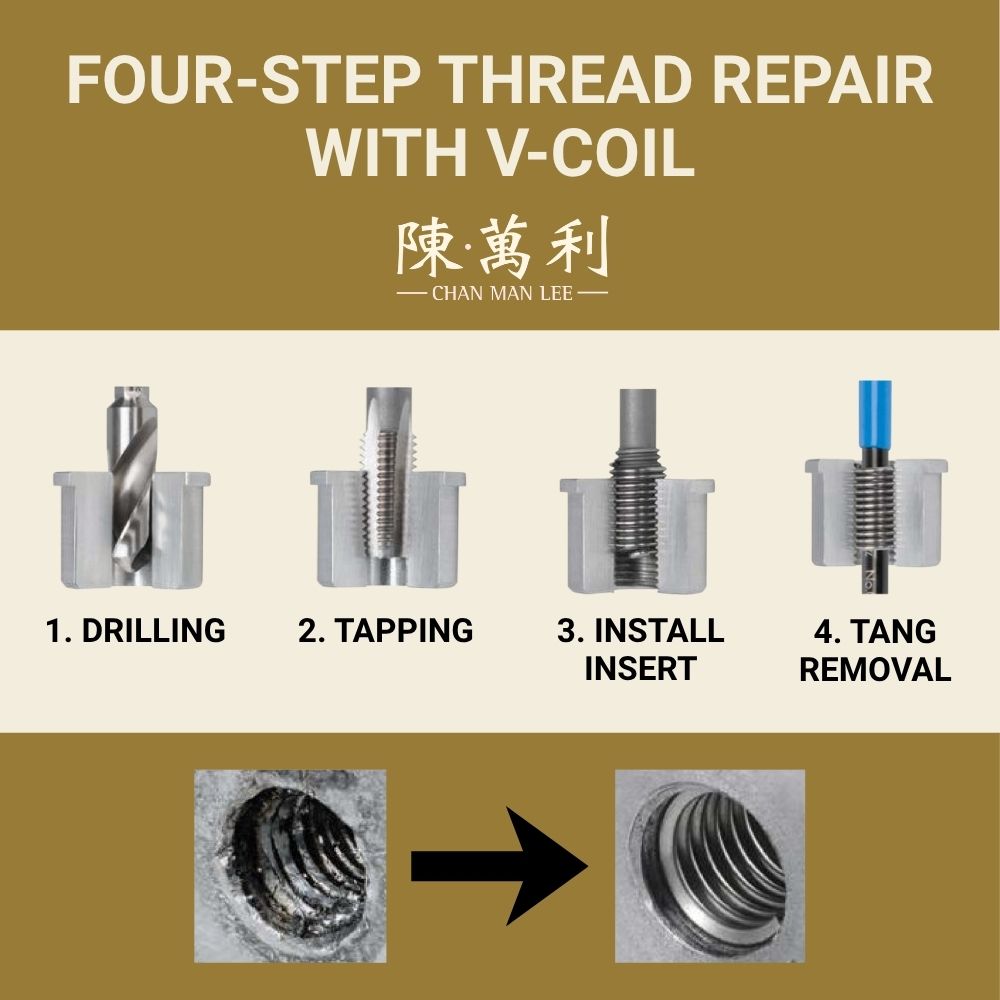

The installation process using a thread repair kit from V-COIL is simple:

Damaged thread → Drill → Tap → Insert → Break tang → Check

1. Drill
   Drill out the damaged thread using the correct drill size to prepare the hole for the new insert.
2. Tap
   Use the tap to cut a new thread into the prepared hole. This creates the thread that holds the insert in place.
3. Insert
   Fit the thread insert onto the insertion tool and screw it into the newly tapped hole until it sits slightly below the surface.
4. Break the Tang
   Once the insert is installed, break off the driving tang using the appropriate tang-breaking tool.
5. Repair Complete
   The damaged thread has now been restored and is ready to accept the original bolt or screw.
